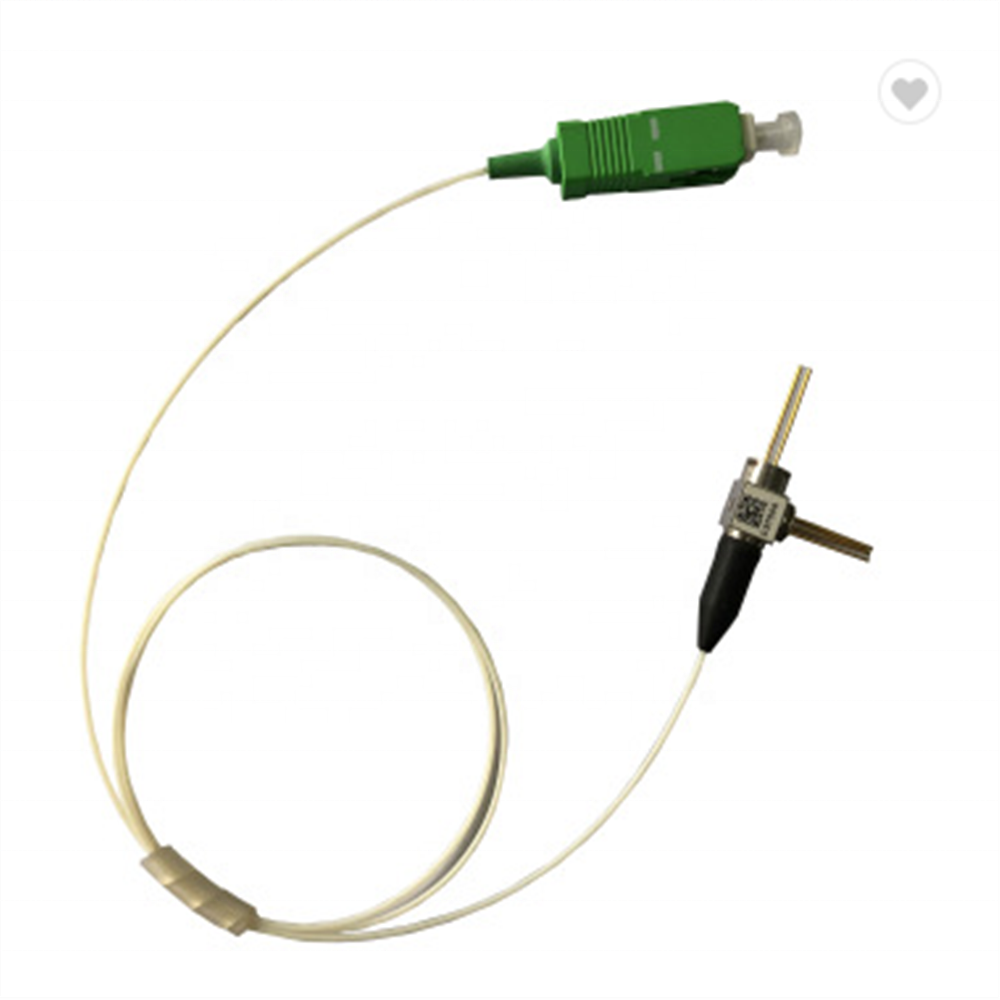

    For Opetical Fiber Communication 1.25G 2.5G Gpon Onu Coaxial Pigtail Bosa

    Ask Lasest Price
    Brand Name : OEM
    Model Number : Pigtail Bosa
    Certification : ISO9001:2008
    Supply Ability : 100000 Piece/Pieces per Month Pigtail Bosa
    Price : $1.00 - $10.00 / Pieces
    • Product Details
    • Company Profile

    For Opetical Fiber Communication 1.25G 2.5G Gpon Onu Coaxial Pigtail Bosa

    Product display
    Features

    High Responsivity

    Small dark current

    High reliability

    Applications

    FTTH,SDH,SONET


    Optical&Electrical Characteristics

    ParametersSymbolMinTypMaxUnitTest conditions
    Power SupplyVcc3.03.33.6V
    Supply CurrentIcc4460mAno loads
    Differential ResponsivityRd1.43.0mW/uW

    Rload=100ohm

    P=-18dBm,λ=1310nm

    Single Ended ResponsivityRs0.71.5mV/uW

    Rload=50ohm

    P=-18dBm,λ1310nm

    Small-Signal BnadwidthBW1.65GHz
    Low-Frequency Cut offLF5kHz
    Rise/Fall Time(20%~80%)tr/tf150200psP=-18dBm,λ1310nm
    Saturation PowerPsat-3dBmλ=1310nm

    Single Ended Output

    Impedance


    Ro405060ohm

    Wavelength

    λ12701620nm
    Sensitivity-22dBm

    λ=1310nm,@2.5Gbps,

    PRVS7,ER=10dB,BER=1E-10


    For Opetical Fiber Communication 1.25G 2.5G Gpon Onu Coaxial Pigtail BosaFor Opetical Fiber Communication 1.25G 2.5G Gpon Onu Coaxial Pigtail Bosa


    Related Product
    For Opetical Fiber Communication 1.25G 2.5G Gpon Onu Coaxial Pigtail Bosa
    Company Information

    For Opetical Fiber Communication 1.25G 2.5G Gpon Onu Coaxial Pigtail Bosa

    Packaging & Shipping

    For Opetical Fiber Communication 1.25G 2.5G Gpon Onu Coaxial Pigtail Bosa

    FAQ

    Q1: How the warranty for products ?
    A: 10 years,and maintance for whole life

    Q2: Can we make OEM for products?
    A: Yes, we can print your logo or label on the products or on the box.

    Q3: Can you provide free samples ?
    A: Some of low value samples can be free for you, but you need pay for the shipping cost.

    Q4: How can you guarentee the quality ?
    A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

    Q5: What is your delivery time ?
    A: Generally, sample: 3~5 working days. formal order: 7-10 working days.

    Q6: What's your payment terms ?
    A: We accept T/T, Western Union, Money Gram, Paypal.
    For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
