    Field assembly SC/APC Fiber Optic fast Connector

    Ask Lasest Price
    Brand Name : OEM
    Model Number : fast connector
    Certification : ISO9001:2008
    Supply Ability : 1000000 Piece/Pieces per Month
    Price : $0.27 - $0.60 / Pieces
    • Product Details
    • Company Profile

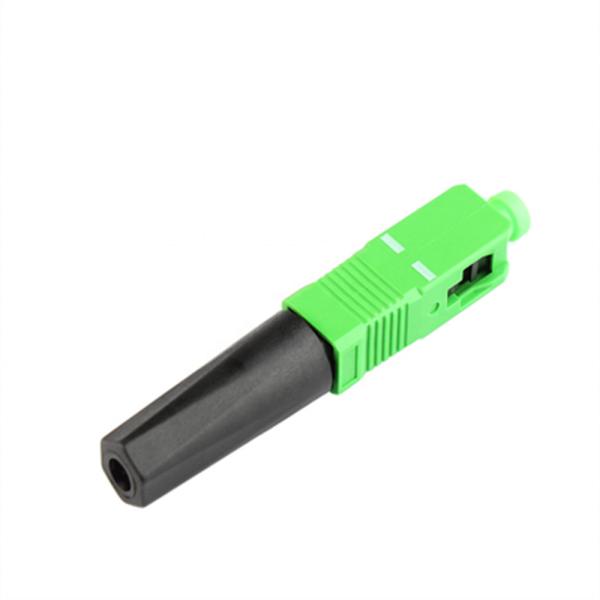

    Field assembly SC/APC Fiber Optic fast Connector

    Product display

    1.Description


    Field Assmbly SC quick connector can proivide a quick and easy of fiber in the field.Options are avaliable for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.This connector system removes any requirement for epoxy,adhesive or costly curing ovens and polishing and fiber ederface inspection.


    2.Features


    1.Factory-installed fiber stub

    2.No epoxy or polishing required

    3.Quick and easy fiber termination in the field 4.Eliminates cable excess length and pigtail splicestorage

    4.Eliminates cable excess length and pigtail splicestorage

    5.Cost effective 6.Applicable to bow-type drop cable and 2.0/3.0 indoor cable ,telecom cable

    3.Specification

    Fast Connector Specification
    ModeSMMM
    PolishUPCAPCPC
    Insertion Loss

    ypical ≤0.2dB

    Maximum ≤0.3dB

    ≤0.25dB
    Return Loss≥50dB≥65dB≥35dB
    Interchangeability≤0.2dB
    Repeatability≤0.1dB
    Durability≤0.2dB (1000 times mating)
    Tensile Strengh> 10kg
    Temperature≤0.2dB (-40+85 sustain 100 hours)
    Humidity≤0.2dB (+25+65 93 R.H.100 hours)

    Field assembly SC/APC Fiber Optic fast ConnectorField assembly SC/APC Fiber Optic fast Connector

    Related Product

    Field assembly SC/APC Fiber Optic fast Connector


    Company Information

    Field assembly SC/APC Fiber Optic fast Connector

    Exhibition

    Field assembly SC/APC Fiber Optic fast Connector

    Certifications

    Field assembly SC/APC Fiber Optic fast Connector

    Packaging & Shipping

    Field assembly SC/APC Fiber Optic fast ConnectorField assembly SC/APC Fiber Optic fast Connector

    FAQ

    Q1: How e warranty for products ?
    A: 10 years,and maintance for whole life

    Q2: Can we make OEM for products?
    A: Yes, we can print your logo or label on the products or on the box.

    Q3: Can you provide free samples ?
    A: Some of low value samples can be free for you, but you need pay for the shipping cost.

    Q4: How can you guarentee the quality ?
    A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

    Q5: What is your delivery time ?
    A: Generally, sample: 3~5 working days. formal order: 7-10 working days.

    Q6: What's your payment terms ?
    A: We accept T/T, Western Union, Money Gram, Paypal.
    For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
