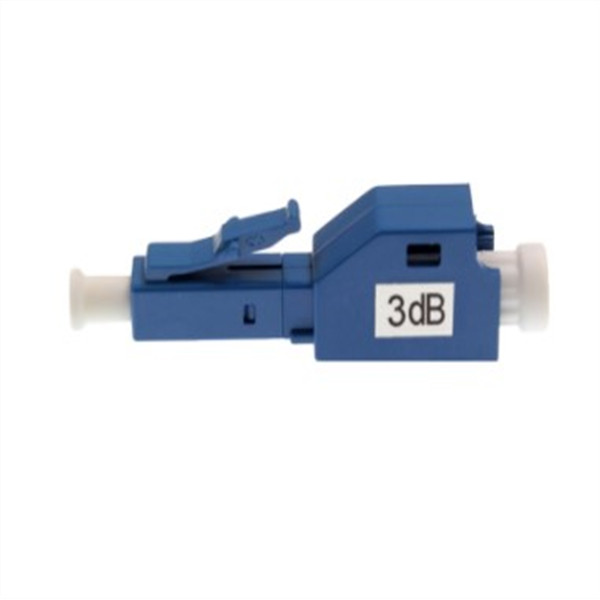

Male To Female 1620nm LC UPC 3dB Fiber Optic Attenuator Single Mode

    Buy cheap Male To Female 1620nm LC UPC 3dB Fiber Optic Attenuator Single Mode from wholesalers

    Buy cheap Male To Female 1620nm LC UPC 3dB Fiber Optic Attenuator Single Mode from wholesalers
    • Buy cheap Male To Female 1620nm LC UPC 3dB Fiber Optic Attenuator Single Mode from wholesalers

    Male To Female 1620nm LC UPC 3dB Fiber Optic Attenuator Single Mode

    Ask Lasest Price
    Brand Name : DYS/OEM
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western
    Supply Ability : 50000/week
    Delivery Time : in 3 days
    Certification : IS09001-2015.ROHS
    Model Number : LC/UPC
    • Product Details
    • Company Profile

    Male To Female 1620nm LC UPC 3dB Fiber Optic Attenuator Single Mode

    Male To Female 1620nm LC UPC 3dB Fiber Optic Attenuator Single Mode


    Singlemode LC 3dB Optical Attenuator Male to Female LC / UPC 1240nm - 1620nm


    Quick Detail:


    Name: LC/UPC


    values:3-20dB


    Brand Name: DYS/OEM


    Delivery Detail:In 3 days


    Singlemode Male to Female fiber optic LC/UPC attenuator


    1: Fixed plug in optical attenuators (Fixed Build-out or Fixed Male to Female) use doped fiber to provide fixed level of optical attenuation.
    2: Typical attenuation values are between 3 and 20 dB.
    3: It is used in optical systems where the optical power from a source is too high for the test equipment in use.
    4: Fixed plug type fiber attenuator provides a connector plug (male) and an adapter socket (female) to connect between fiber patch cord and fiber adapter.
    5: Fixed plug type optical attenuator introduces an in-line fixed loss that will reduce the source power to an acceptable detection level.
    6: The attenuation level should be stable with temperature and wavelength for a stable reliable system.
    Detail:

    Our Fixed plug type Optical Attenuators and our Fixed In-Line Optical Attenuators are devices that convert optical power into heat using specialty Metal Ion Doped Optical Fibers allowing the optical power to be attenuated to a desired level.


    Specifications:

    Attenuation Value 1dB ~ 30dB

    Operating Wavelength 1240 ~ 1620nm (Dual 1310/1550nm)

    Premium

    Return Loss

    UPC >55dB

    APC >65dB

    Attenuation

    Accuracy

    1 ~ 7 dB ±0.5dB

    8 ~ 12 dB ±0.7dB

    13 ~ 17 dB ±1.0dB

    18 ~ 25 dB ±1.3dB

    Maximum Optical Input Power 1000mW

    Polarization Dependent Loss ≤0.1dB

    Operating Temperature Range -40 to 75

    Storage Temperature Range -40 to 85

    Humidity 95%RH

    Competitive advantages

    Hubei Chenyu Optoelectronics Technology Co., Ltd. strictly implements the ISO9001 quality management system. The company has good facilities and qualified human resource management personnel to ensure stable product quality and excellent performance; and with good after-sales service, it has won customers’ Trust, products are exported to Europe, America and Southeast Asia countries.
