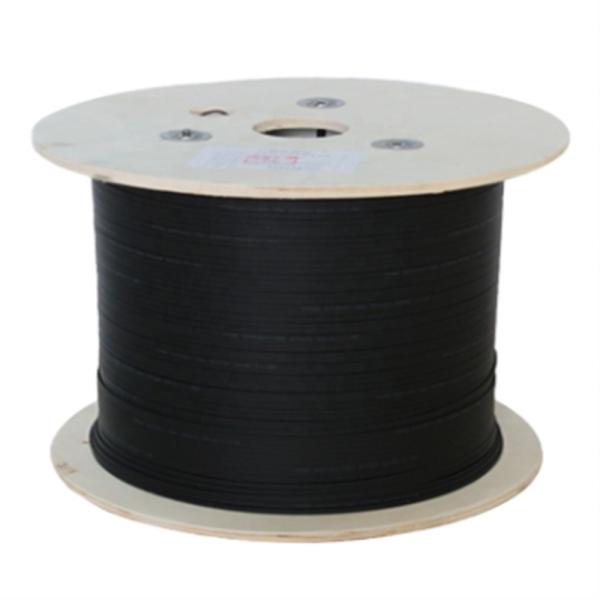

    Small Diameter FTTH Fiber Optic Cable Anti Electromagnetic Interference

    Ask Lasest Price
    Brand Name : CY
    Model Number : fiber optic cable camera
    Certification : CE/ROHS/ISO9001
    Supply Ability : 100000 Kilometer/Kilometers per Month fiber optic cable
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    • Product Details
    • Company Profile

    Small Diameter FTTH Fiber Optic Cable Anti Electromagnetic Interference

    Product display
    FTTH fiber optic drop cable uses butterfly flat structure, whose optical fiber unit is positioned in the centre. Two parallel Fiber Reinforce Plastic (FRP) strength members are placed at the two sides. Then, the cable is completed with LSZH sheath. FTTH indoor cable has a much greater bandwidth to carry data and less susceptible to interference than common indoor fiber optic cables. With small diameter, water-resistant, soft and bendable characteristics, it's easy to deploy and maintenance. In addition, the non-metallic strength member can provide lightning protection and anti-electromagnetic interference. FTTH fiber optic cables are ideal for indoor cabling, end users directly cabling, and access network

    Product Parameters

    cores NoOD (outer dia.)

    Weight

    kg/km

    Tensile

    Strength Long

    /Short Term

    Crush Resistance

    Long/Short Term N

    /100mm

    Bending Radius
    Static/Dynamic
    mm
    12.0x5.020100/2001000/220010D/20D
    22.0x5.020100/2001000/220010D/20D
    42.0x5.020100/2001000/220010D/20D
    62.0x5.021100/2001000/220010D/20D
    82.0x5.023100/2001000/220010D/20D
    122.0x5.025100/2001000/220010D/20D

    Cable information
    No.of Fiber cores4122496288
    No.of tube1Tubes2Tubes4Tubes8Tubes24Tubes
    No.of tube/tube4661212
    Cable Outside DiameterNom.9.5mm9.59.514.621.5
    Cable Weight(kg/km)808080220310
    Loose Tube MaterialPBT(Polybutylene terephthalate
    Central Strength MemberSteel wire Strength
    Outer SheathNom.1.8mm Thick.Black MDPE

    Mechanical Environmental Performance
    Tensile StrengthLong term:600N Short Term:1500N
    Crush ResistanceLong term:300N Short Term:1000N
    Bending RadiusLong term:10D. Short term 20D
    Storage Temperature-20°-+60°

    Optical fiber performance
    Fiber typeG652D.125+/-1.0um
    Mode field Diameter9.2+-0.2um at 1310nm
    Cladding Diameter125+-1um
    Cladding Non-Cirularity≤1%
    Coating Diameter245+-10um
    Attenuation Coefficient≤0.36dB/km at 1310nm , ≤0.22dB/km at 1550nm
    Chromatic Dispersion≤3.5ps/nm/km at 1285-1330nm , ≤18ps/s/nm/km at 1550nm
    Zero Dispersion1300-1322nm
    PMD Coeffcient≤0.2ps/km

    Related Product

    Small Diameter FTTH Fiber Optic Cable Anti Electromagnetic Interference

    Packaging & Shipping

    Small Diameter FTTH Fiber Optic Cable Anti Electromagnetic InterferenceSmall Diameter FTTH Fiber Optic Cable Anti Electromagnetic Interference

    FAQ

    Q1: How the warranty for products ?
    A: 10 years,and maintance for whole life

    Q2: Can we make OEM for products?
    A: Yes, we can print your logo or label on the products or on the box.

    Q3: Can you provide free samples ?
    A: Some of low value samples can be free for you, but you need pay for the shipping cost.

    Q4: How can you guarentee the quality ?
    A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

    Q5: What is your delivery time ?
    A: Generally, sample: 3~5 working days. formal order: 7-10 working days.

    Q6: What's your payment terms ?
    A: We accept T/T, Western Union, Money Gram, Paypal.
    For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
