Brand Name : | CY/OEM |
Model Number : | 1*32 SC/APC |
Certification : | IS09001-2015.ROHS |
Supply Ability : | 50000PCS / Month |
Price : | 1-20usd/pcs |
Payment Terms : | T/T or L/C,Western Union or Paypal |
Delivery Time : | 2-3 work days |

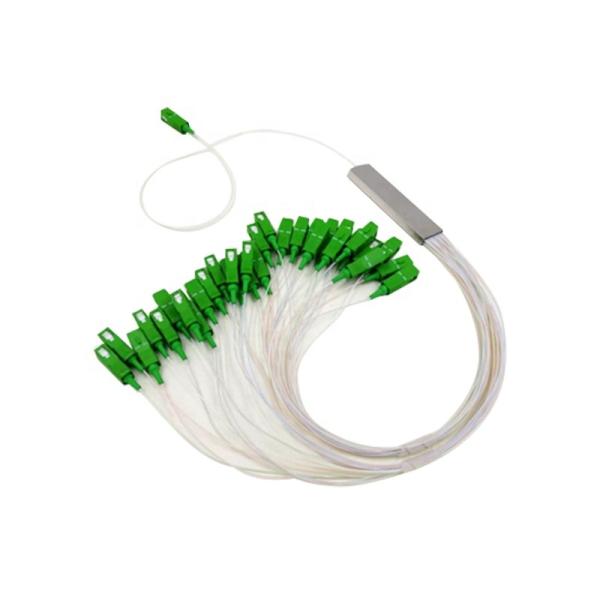

LGX 1260~1650nm, 1*32 PLC ptical Fiber Splitter Cassette Type
Quick Details:
Description:
PLC (planar lightwave circuit) splitter is fabricated by using
silica optical waveguide technology. It features wide operating
wavelength range, good channel-to-channel uniformity, high
reliability and small size, and is widely used in PON networks to
realize optical signal power management. We provide a whole series
of 1 x N and 2 x N splitters that are tailored for specific
applications. All products meet Telcordia 1209 and 1221 reliability
requirements and are certified by TLC for network development
requirment.
Technical Specification:
Parameter for PLC Splitter | |||||||
Parameter | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
Attenuation Value(dB) | ≤3.7 | ≤7.5 | ≤11 | ≤14.5 | ≤18 | ≤22 | |
Loss Uniformity(dB) | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.4 | ≤1.9 | ≤2.5 | |
Return Loss(dB) | APC | ≥60 | |||||
UPC | ≥60 | ||||||
PDL(dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | |
Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | |
Operating Temperature(oC) | -40~85 | ||||||
Storage Temperature(oC) | -40~85 | ||||||
Operating Bandwidth(nm) | ±40 | ||||||
Operating Wavelength(nm) | 1260~1650 |
company advantage
Hubei Chenyu Optoelectronics Technology Co., Ltd. strictly
implements the ISO9001 quality management system. The company has
good facilities and qualified human resource management personnel
to ensure stable product quality and excellent performance; and
good after-sales service, which has won the trust of customers ,
Products are exported to Europe, America and Southeast Asian
countries.
![]() |
