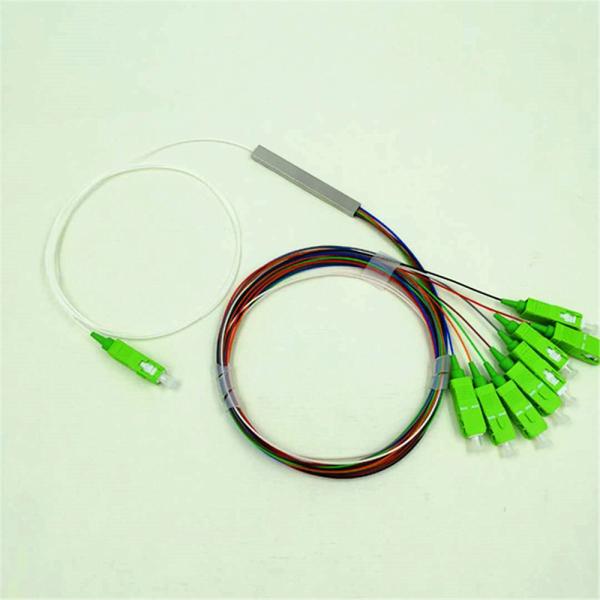

Steel Tube 1x8 Fiber Splitter , Optical PLC Splitter With SC / APC / UPC Connector

    Buy cheap Steel Tube 1x8 Fiber Splitter , Optical PLC Splitter With SC / APC / UPC Connector from wholesalers

    Buy cheap Steel Tube 1x8 Fiber Splitter , Optical PLC Splitter With SC / APC / UPC Connector from wholesalers
    • Buy cheap Steel Tube 1x8 Fiber Splitter , Optical PLC Splitter With SC / APC / UPC Connector from wholesalers

    Steel Tube 1x8 Fiber Splitter , Optical PLC Splitter With SC / APC / UPC Connector

    Ask Lasest Price
    Brand Name : DYS/OEM
    Model Number : Tteel Tube 1x8SC/APC
    Supply Ability : 30000 Piece/Pieces per Month
    Price : 1-20usd Negotiable
    Payment Terms : Western Union, L/C, T/T, MoneyGram
    Certification : IS09001-2015.ROHS
    Delivery Time : 2days
    • Product Details
    • Company Profile

    Steel Tube 1x8 Fiber Splitter , Optical PLC Splitter With SC / APC / UPC Connector

    High Light:

    single mode fiber splitter

    ,

    fiber optic cable splitter


    Steel Tube 1x8 Fiber Splitter , Optical PLC Splitter With SC / APC / UPC Connector


    Quick Details

    Brand Name: DYS

    Model Number:SC/APC

    Insertion Loss≤0.5 dB

    Return Loss(dB):APC:60

    Operating Temperature(°C):-40~85


    Specification:

    Type1×21×41×81×161×321×64
    Fiber Type9/125 um SMF-28e or customer appoint
    Operating Wavelength(nm)1260~1650
    Insertion Loss(dB)Typical3.66.810.013.016.019.5
    (P/S)Max3.8/4.07.1/7.310.2/10.513.5/13.716.5/16.820.5/21.0
    Loss Uniformity(dB)Max0.60.60.81.21.52.5
    Polariation Dependent Loss(dB)Max0.150.150.250.30.30.3
    Directivity(dB)Min55
    Return Loss(dB)MinUPC:50 APC:60
    Operating Temperature(°C)-40~85
    Storage Temperature(°C)-40~85
    Connector TypeFC. SC. ST. LC. MU

    Features
    Low Insertion loss and Low PDL
    Uniform power splitting
    High reliability
    Excellent environmental stability
    Compact size and various package

    Applications
    FTTx Systems
    Digital, hybrid and AM-Video systems
    LAN, WAN and Metro Networks
    CATV systems
    Other applictaions in fiber optic systems


    Competitive advantages

    Hubei Chenyu Optoelectronics Technology Co., Ltd. strictly implements the ISO9001 quality management system. The company has good facilities and qualified human resources management personnel to ensure stable product quality and excellent performance; and good after-sales services have won the trust of customers , Products are exported to Europe, America and Southeast Asian countries.
