1*16 PLC Audio Optical Cable Splitter SC/APC Connectors 0.9 / 2.0 / 3.0mm Cable

    Buy cheap 1*16 PLC Audio Optical Cable Splitter SC/APC Connectors 0.9 / 2.0 / 3.0mm Cable from wholesalers

    Buy cheap 1*16 PLC Audio Optical Cable Splitter SC/APC Connectors 0.9 / 2.0 / 3.0mm Cable from wholesalers
    • Buy cheap 1*16 PLC Audio Optical Cable Splitter SC/APC Connectors 0.9 / 2.0 / 3.0mm Cable from wholesalers

    1*16 PLC Audio Optical Cable Splitter SC/APC Connectors 0.9 / 2.0 / 3.0mm Cable

    Ask Lasest Price
    Brand Name : OME/CY
    Model Number : 1*16 PLC
    Supply Ability : 50000 Piece/Pieces per Month
    Price : 60-100usd/piece
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram
    Certification : IS09001-2015.ROHS
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    1*16 PLC Audio Optical Cable Splitter SC/APC Connectors 0.9 / 2.0 / 3.0mm Cable

    High Light:

    multimode fiber splitter

    ,

    single mode fiber splitter


    1*16 PLC Splitter / Optical Fiber Splitter With SC/APC Connectors With 0.9 / 2.0 / 3.0mm Cable


    Quick Details

    Brand Name: CY
    Model Number: 1*16 PLC
    Insertion Loss≤0.5 dB
    Return Loss(dB):UPC:50 APC:60
    Operating Temperature(°C):-40~85
    Connector Type:SC/APC

    1. Specifications

    ParametersSpecificationsUnitsRemark
    Channel Number1×16
    Operation Wavelength1280 ~ 1650nm
    Insertion Loss≤17.4dB
    Uniformity≤1.5dB
    Polarization Dependent Loss0.2dB
    Return Loss≥50dB
    Directivity≥55dB
    Fiber TypeG657A
    PigtailInput: 0.9 /2.0/3.0mm Cable
    ConnectorSC/APCN/A<0.3dB


    1.2 Environmental requirements

    ParametersSpecificationsUnitsRemark
    Operating Temperature-40 ~ +85°C
    Storage Temperature-60 ~ +85°C

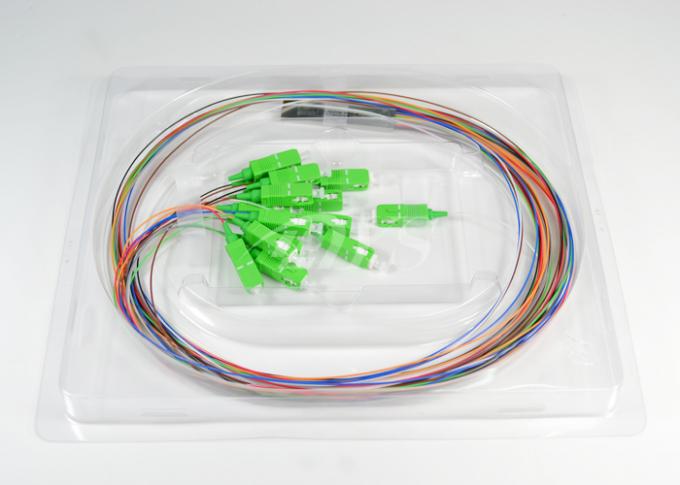

    1*16 PLC Audio Optical Cable Splitter SC/APC Connectors 0.9 / 2.0 / 3.0mm Cable 0

    Competitive advantages

    Hubei Chenyu Optoelectronics Technology Co., Ltd. strictly implements the ISO9001 quality management system. The company has good facilities and qualified human resources management personnel to ensure stable product quality and excellent performance; and good after-sales services have won the trust of customers , Products are exported to Europe, America and Southeast Asian countries.
