    G657A1 PLC Optical Splitter

    Ask Lasest Price
    Brand Name : CY/OEM
    Model Number : 1*32 abs box module sc upc
    Supply Ability : 50000/week
    Price : Negotiable
    Payment Terms : Western Union, L/C, T/T, D/A, D/P, T/T, Western Union, MoneyGram, L/C
    Delivery Time : in 3 days
    Certification : IS09001-2015.ROHS
    • Product Details
    • Company Profile

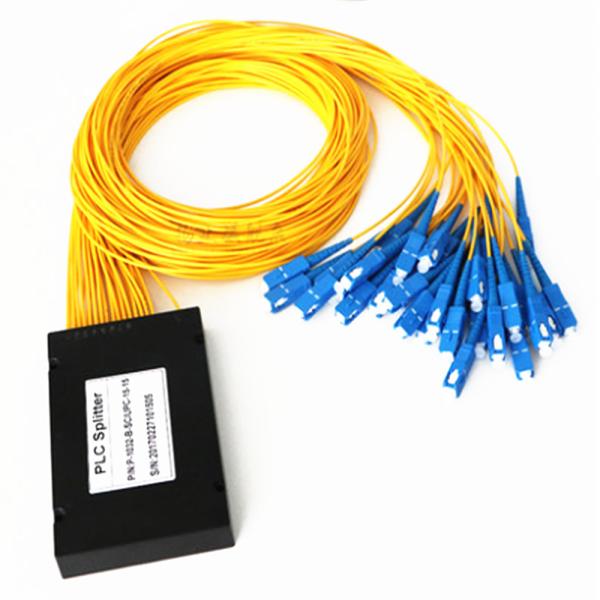

    G657A1 PLC Optical Splitter

    G657A1 PLC Optical Splitter


    1 x 32 PLC Single Mode Optical Fiber Splitter SC/UPC


    Model Number::1*32 PLCLength::1m ,1.5m, 2m Or Customized Length
    Ferrule Polish::APC,UPC,PC
    High Light:

    multimode fiber splitter fiber optic cable splitter


    Quick Detail:

    Model Number:1*32 PLC

    Length: 1m ,1.5m, 2m or customized length


    1. Applications

    • Optical communication system
    • System and signal monitoring
    • CATV Systems & Fiber Sensors
    • Fiber to the home (FTTH)
    • Network redundancy
    • Laser splitting

    2. Features

    Various coupling ratio
    Single mode and multi mode available
    Low insertion loss, low PDL
    Environmental stable
    Industry standard and custom housing available
    Variety of connectors available
    1x2, 1x4 and 1x n customized couplers configuration available

    3. specifications

    ParameterConfiguration
    N x 4(N=1,2,16)N x 8 (N=1,2,8)N x 16 (N=1,2,16)N x 32 (N=1,2,32)
    Operate Wavelength(nm)1310/1550, or customized
    Bandwidth(nm)±20
    Max.Excess Loss(dB)0.20.30.40.5
    Typ.Insertion Loss(dB)6.29.312.415.5
    Max.Insertion Loss(dB)6.810.213.617
    Uniformity(dB)1.21.82.43
    PDL(dB)0.080.120.160.2
    Thermal Stability(dB)0.20.30.40.5
    Directivity(dB)>≥60
    Operate Temperature(°C)-40~ +70
    Lead Length(m)1 or customized
    Lead Type(mm)φ3.0, φ2.0, φ0.9

    Competitive Advantage
    CY strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; And good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.
