    G657A Passive Optical Splitter

    Ask Lasest Price
    Brand Name : OEM
    Model Number : Best price 1x4 plc splitter
    Certification : ISO9001:2008
    Supply Ability : 30000 Piece/Pieces per Month
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    • Product Details
    • Company Profile

    G657A Passive Optical Splitter

    G657A Passive Optical Splitter

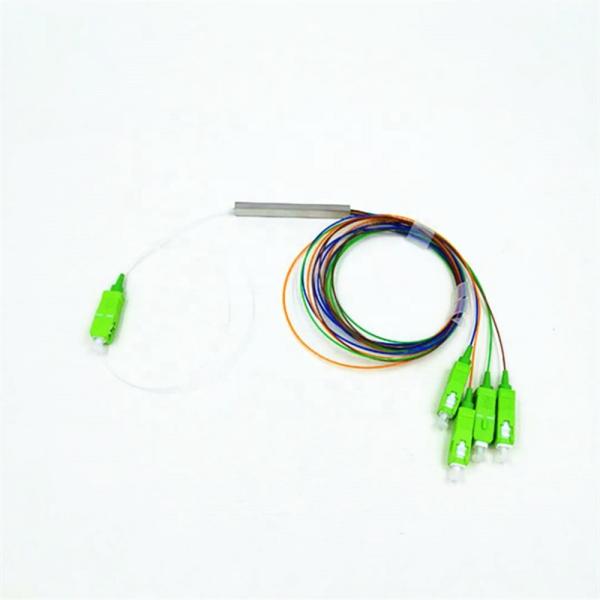

    1x4 4 Way Passive Optical Splitter Steel Tube Type Custom Length

    Planar light-wave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical wave-guide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.
    Adopt high strength stainless steel, pass salt spray test
    Ferrule core is less than 0.5um
    Adopt 100% new raw material, ROHS compliance
    Low Insertion loss
    Low PDL Compact Design
    Good channel-to-channel uniformity
    Wide Operating Wavelength: from 1260nm to 1650nm
    Wide Operating Temperature: from -40℃ to 85℃

    Specification:

    Parameter

    Specification

    Operating Wavelength (nm)

    1260 ~ 1650

    Type

    1x2

    1x4

    1x8

    1x16

    1x32

    1x64

    2x4

    2x8

    2x16

    Insertion Loss (dB) Max.

    ≤4.2

    ≤7.5

    ≤10.6

    ≤13.7

    ≤17.2

    ≤21

    ≤7.8

    ≤10.8

    ≤13.9

    Uniformity (dB) Max

    ≤0.6

    ≤0.8

    ≤1.0

    ≤1.5

    ≤2.0

    ≤2.5

    ≤1.0

    ≤1.5

    ≤2.0

    PDL(dB)Max

    <0.2

    <0.2

    <0.2

    <0.3

    <0.3

    <0.4

    <0.3

    <0.3

    <0.4

    Directivity (dB) Min

    55

    Return Loss (dB) Min

    55(50)

    Operating Temperature (°C)

    -45~ +85

    Storage Temperature (°C)

    -5~ +75

    Fiber length

    1m or custom length

    Fiber Type

    Corning G656A1 or Fiberhome G657A1

    Connector Type

    Custom specified


    Power Handling (mW)

    300

    Related Product

    G657A Passive Optical Splitter

    G657A Passive Optical Splitter

    FAQ

    Q1: How the warranty for products ?
    A: 10 years,and maintance for whole life

    Q2: Can we make OEM for products?
    A: Yes, we can print your logo or label on the products or on the box.

    Q3: Can you provide free samples ?
    A: Some of low value samples can be free for you, but you need pay for the shipping cost.

    Q4: How can you guarentee the quality ?
    A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

    Q5: What is your delivery time ?
    A: Generally, sample: 3~5 working days. formal order: 7-10 working days.

    Q6: What's your payment terms ?
    A: We accept T/T, Western Union, Money Gram, Paypal.
    For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
