    1x2 Type WDM Module 1310 / 1550nm Wavelength For CDMA CATV GSM

    Ask Lasest Price
    Brand Name : OEM
    Model Number : WDM module
    Certification : CE RoHS FCC
    Supply Ability : 100000 Piece/Pieces per Month WDM module
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    • Product Details
    • Company Profile

    1x2 Type WDM Module 1310 / 1550nm Wavelength For CDMA CATV GSM

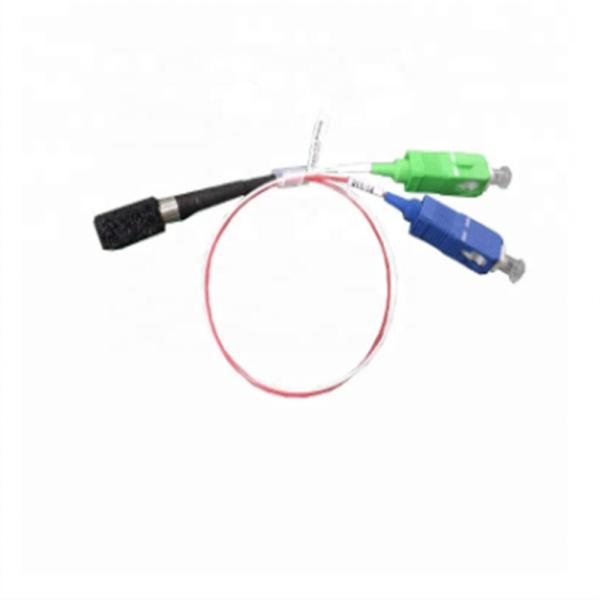

    Product display
    Features

    High sensitivity

    Crosstalk:>30dB

    Pass lsolation:>30dB

    Reflect lsolation:>18dB

    Applications

    G/EPON network

    RFoG and Cable PON applications


    1550nm Analog Receiver(Tc=25℃,unless otherwise noted)

    ParameterSymbolConditionMinTypMaxUnit
    lnput WavelengthλpdTc=25℃154015501560nm
    ResponsivityR

    Tc=-40~+85℃,

    @1550nm

    0.800.85--A/W
    CapacitanceCpdVr=5V,F=1MHz----0.80pF
    Dark CurrentldVr=5V-----70dBc

    Second Order

    lnter-Modulation Distortion

    lMD2

    λ=1550nm(*1) ,

    Vpd=12V

    Tc=-40~+85℃

    35----dB
    Optical Return LossORL

    λ=1550nm-1560nm,

    Tc=-40~+85℃

    35----dB

    Optical lsolation from

    Exeternal Source


    lSO1

    λ=1260nm-1360nm,

    Tc=-40~+85℃

    40----dB
    lSO1

    λ=1490nm-1500nm

    Tc=-40~+85℃

    30----dB

    Optical Crosstalk from

    lnternal LASER

    XoptTc=-40~+85℃(*2)-----28dB

    1x2 Type WDM Module 1310 / 1550nm Wavelength For CDMA CATV GSM

    Related Product

    1x2 Type WDM Module 1310 / 1550nm Wavelength For CDMA CATV GSM

    Packaging & Shipping

    1x2 Type WDM Module 1310 / 1550nm Wavelength For CDMA CATV GSM

    FAQ

    Q1: How the warranty for products ?
    A: 10 years,and maintance for whole life

    Q2: Can we make OEM for products?
    A: Yes, we can print your logo or label on the products or on the box.

    Q3: Can you provide free samples ?
    A: Some of low value samples can be free for you, but you need pay for the shipping cost.

    Q4: How can you guarentee the quality ?
    A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

    Q5: What is your delivery time ?
    A: Generally, sample: 3~5 working days. formal order: 7-10 working days.

    Q6: What's your payment terms ?
    A: We accept T/T, Western Union, Money Gram, Paypal.
    For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
